Twin Towers Guiyang, West Tower Download PDF


Click an image to view larger version.
Height: To Tip
335 m / 1,099 ft
Height: Architectural
335 m / 1,099 ft

Twin Towers Guiyang, West Tower Outline
Floors Above Ground
74
Floors Below Ground
2
Development GFA
18,300,000 m² / 196,979,560 ft²

Facts

Official Name Twin Towers Guiyang, West Tower
Name of Complex Huaguoyuan
Other Names Huaguoyuan West Tower, Huaguoyuan Tower 2
Structure Type Building
Status Architecturally Topped Out
Country China
City Guiyang
Street Address & Map Wulichong Road
Building Function hotel / office
Structural Material composite
Construction Start 2012
Completion 2017

Companies Involved

Architect
Design LWK & Partners
Architect of Record China Huaxi Engineering Design & Construction Ltd.
Structural Engineer
Design Arup
MEP Engineer
Design Arup
Main Contractor China State Construction Engineering Corporation
Other Consultant
Façade SuP Ingenieure GmbH
• Interiors Benoy
Material Supplier
• Elevator Schindler

About Twin Towers Guiyang, West Tower

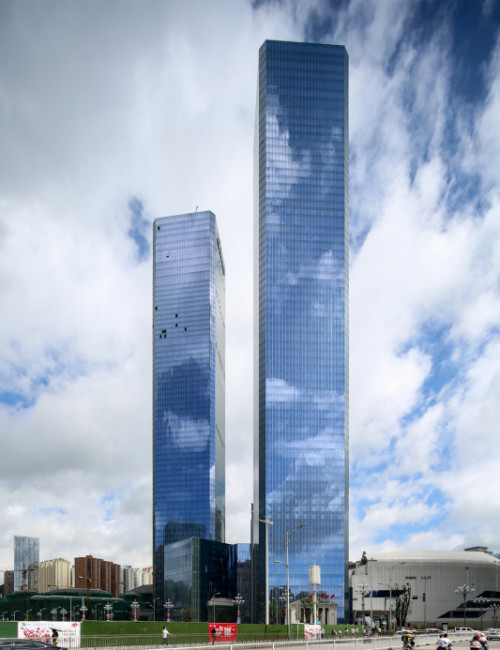

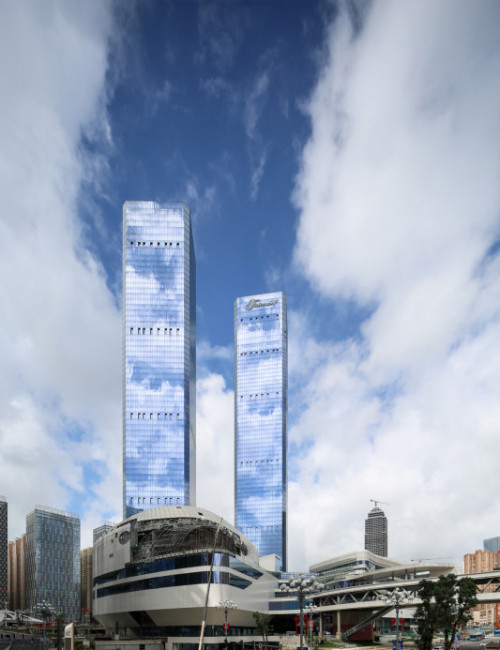

Located in the heartland city of Guiyang, this twin-tower development seeks to enrich the city skyline with a simple modern presence that emphasizes symmetry and balance. The towers are located near the Guiyang commercial street, which is a main thoroughfare through the city, and lies south of an ecological wetland park. The façade of the twin towers reflects simplicity and uniformity, enriched with an assortment of explicit details. The 1.8 meter-wide glass panes cover the towers without visible spandrels, forming a streamlined appearance that unifies the complex.

The two towers are offset from a large six story retail podium which then extends an additional 5 floors underground. The towers were constructed simultaneously and rose from a deep excavation of the entire site. Both towers are constructed with composite frames composed of a reinforced concrete core and exterior columns of steel fully encased in concrete. The towers are square in plan with chamfered corners and are framed with 9 structural columns on each side of the perimeter which reduces to 5 large columns at the base through the use of a load transfer of diagonal columns spanning through four floors just above the main lobbies. The perimeter structural grid remains the same for the full remaining height of the east tower, however on the west tower, this grid reduces to 7 columns on each side for the uppermost floors where a hotel is located above office space.

When the towers were completed, they became Guiyang’s first supertall buildings as well as the centerpiece of an emerging cluster of new tall buildings on the western side of the city.
